- Used for : heat treatment, sintering, washing, drying, transferring
- Material : SUS 304, 316, 316L, 310S

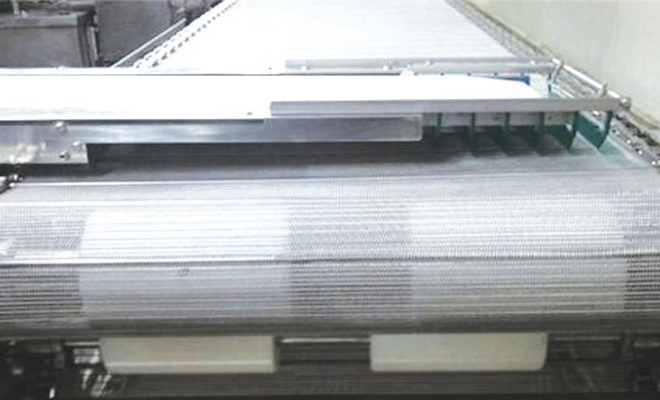

It is called Wire Conveyer Belt and ideal for transfer and positive drive.

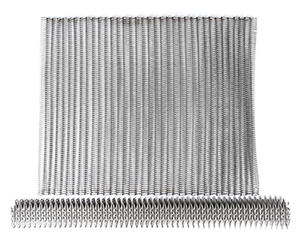

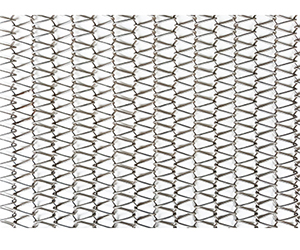

Mesh Belt
Mesh Belt
-
- S-TYPE
-
- S-TYPE is very simply constructed and suitable for light products transferring. It has a problem to be bended on one side so that tensile strength is the important to prevent the problem.
- Used for : transportation for food and textile / cleaning (metal products, electrical components)
-
- B-TYPE
-
- B-Type consist of alternate coils wound to the right and to the left which are joined with crimped cross rods. The edge of the belt in this type is formed by the ends of the coil wire and the cross wire being welded together. It is possible to manufacture these belts with very small pitch of cross rods.
- Used for : transportation for food, drying for laminate, freeze for food, heat treatment for ceramic
-
- H-TYPE
-
- H-TYPE is intensely constructed and suitable to transfer very small products.
- Used for : transformation and dry for food, heat treatment for metal, oven for snacks
-
- G-TYPE
-
- G-TYPE is very similar with B-TYPE but it has smaller pitch on steel wire.
- Used for : heat treatment for metal, sintering, transformation for screws
-
- DB-TYPE
-
- DB-TYPE has high tensile force and has small pitch so that it can be used for all sorts of things.
- Used for : transportation for metal and machine parts, heat treatment for metal and machine
